USB EEPROM PROGRAMMER ZP20e - EUROVISION

Programmer Specification

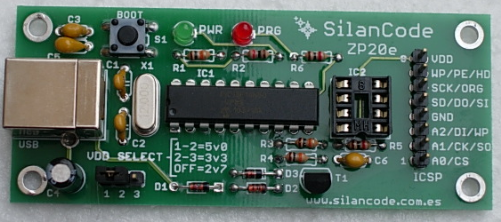

ZP20E

USB 1.1 and 2.0 - 12Mbps compatible port connection

Use a USB calbe type B male (same as the USB printers)

USB port powered therefore don't need extern power supply

Windows 98/ 98SE/ Me/ NT/ 2000/ XP/ Vista /Windows 7 compatible

HID class device therefore don't need custom drivers to install. It use the windows native drivers

It use the ZP20 software, specially designed for this programmer, very intuitive and very easy to use - 5v, 3.3v and 2.7v support

8 pin IC socket and ICSP (In Circuit Serial Programming) connector

The ICSP  connector allow programming the chips, without extract them of the PCB

It support I²C, µWire, SPI , UNI/O and compatibles EEPROM's.

ZP20 Software - Main Screen

Downloads

       ZP20e - Device List (PDF)

       ZP20 - CONTROL SOFTWARE
